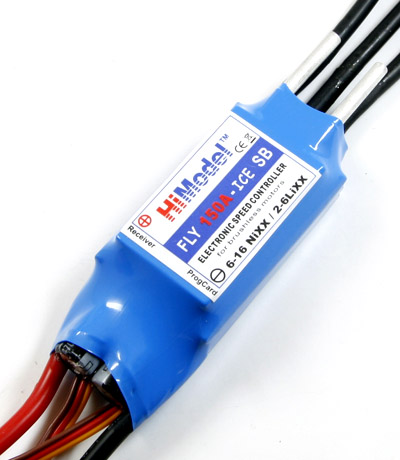

HiModel ICE 150A 2-6S 船用水冷无刷电调 电子调速器 / ICE-150A-ICE150BT
|
HiModel ICE Series Boat ESC W/Water cooling
|
||||||||
| Model | Continuous Current（A） | Cell Number (Lipo) | BEC Mode | BEC Output | PCB Dimension (L*W) | Connector | Wire Length（MM）/Gauge | Signal Wire Length（MM） |
| 60A |
60A
|
2—6 |
Switch
|
5.5V/6A
|
50MM*30MM |
NO
|
120 14# |
300
|
| 80A |
80A
|
2—6 |
Switch
|
5.5V/6A
|
50MM*30MM |
NO
|
120 14# |
300
|
| 100A |
100A
|
2—6 |
Switch
|
5.5V/6A
|
50MM*30MM |
NO
|
120 12# |
300
|
| 150A |
150A
|
2—6 |
Switch
|
5.5V/6A
|
50MM*30MM |
NO
|
120 10# |
300
|
| 60A-HV |
60A
|
4—12 |
NO
|
NO
|
50MM*30MM |
NO
|
120 14# |
300
|
| 100A-HV |
100A
|
4—12 |
NO
|
NO
|
50MM*30MM |
NO
|
120 12# |
300
|
| 120A-HV |
120A
|
4—14 |
NO
|
NO
|
68MM*53MM |
NO
|
120 10# |
300
|
| 180A-HV |
160A
|
4—14 |
NO
|
NO
|
68MM*53MM |
NO
|
120 10# |
300
|
包含:
1 x ICE-150A 船用电调
1 x ICE-150A 船用电调
