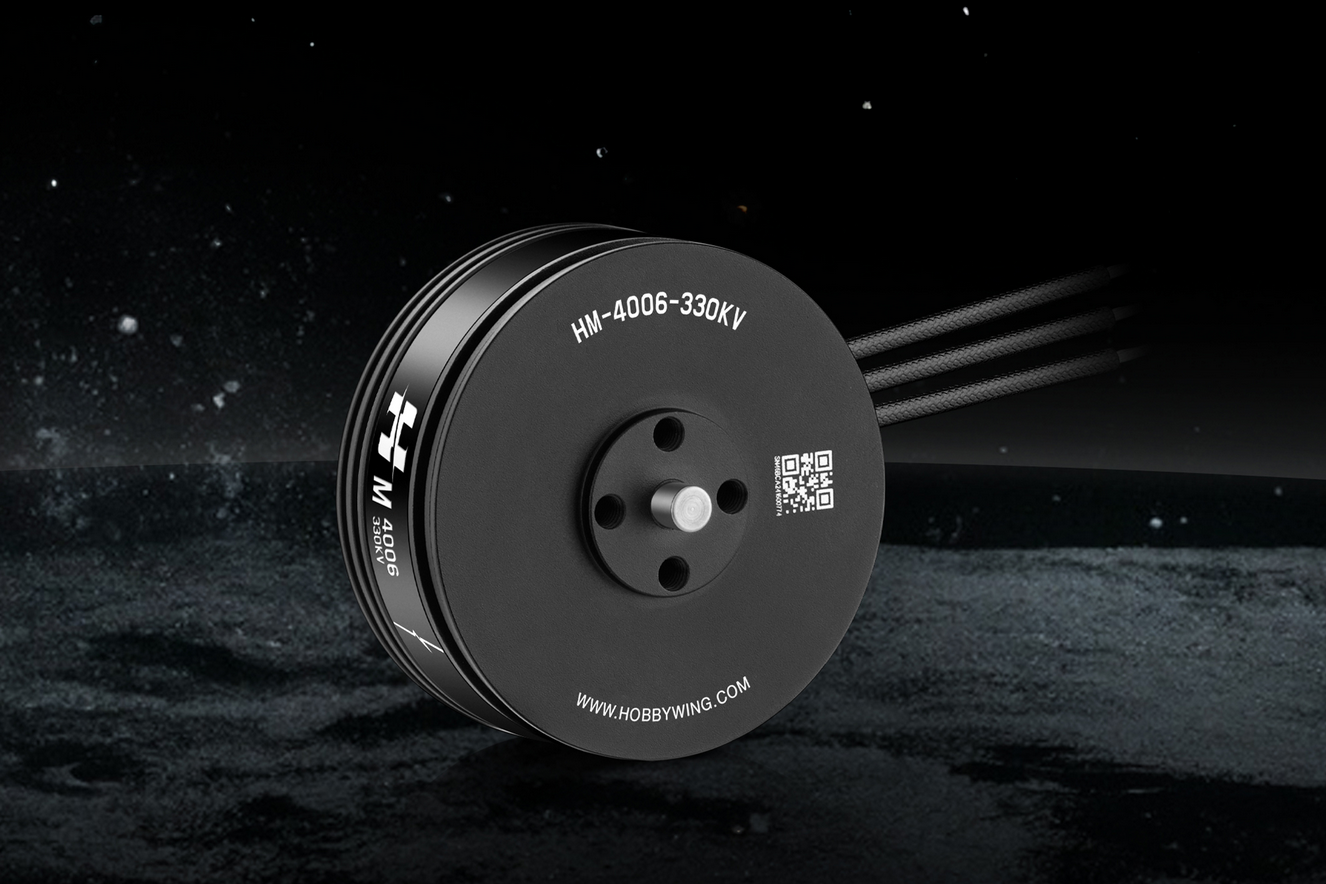

好盈M4006 HP无刷电机

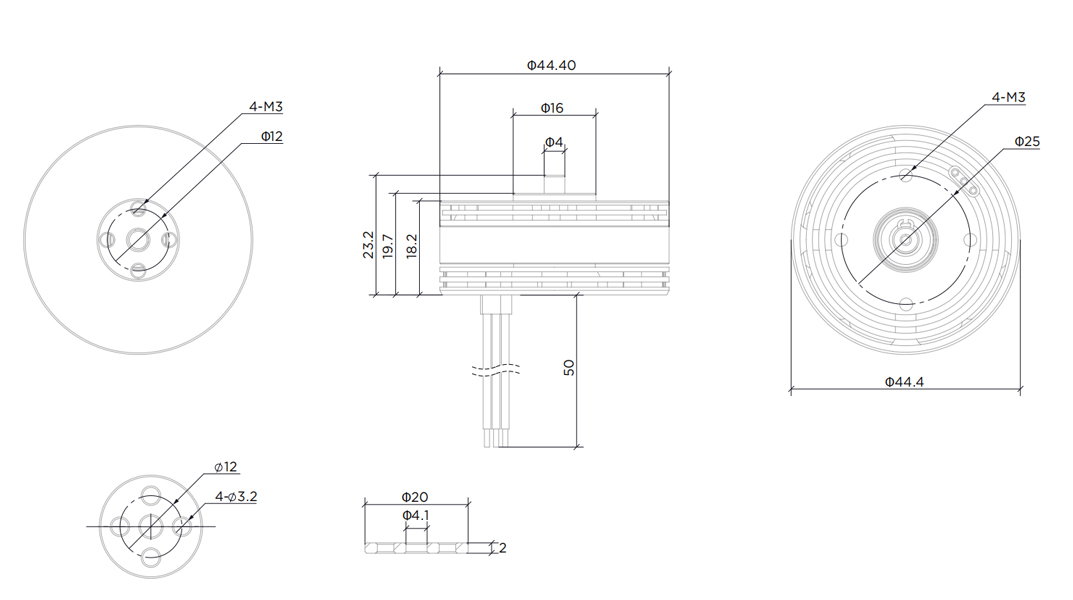

M4006 HP 工程图
| 产品型号 |
|
||||||||||||||||||||||||||||||
| 基本参数 |
|
||||||||||||||||||||||||||||||
| 技术参数 |
|
||||||||||||||||||||||||||||||
| 应用搭配推荐 |
|

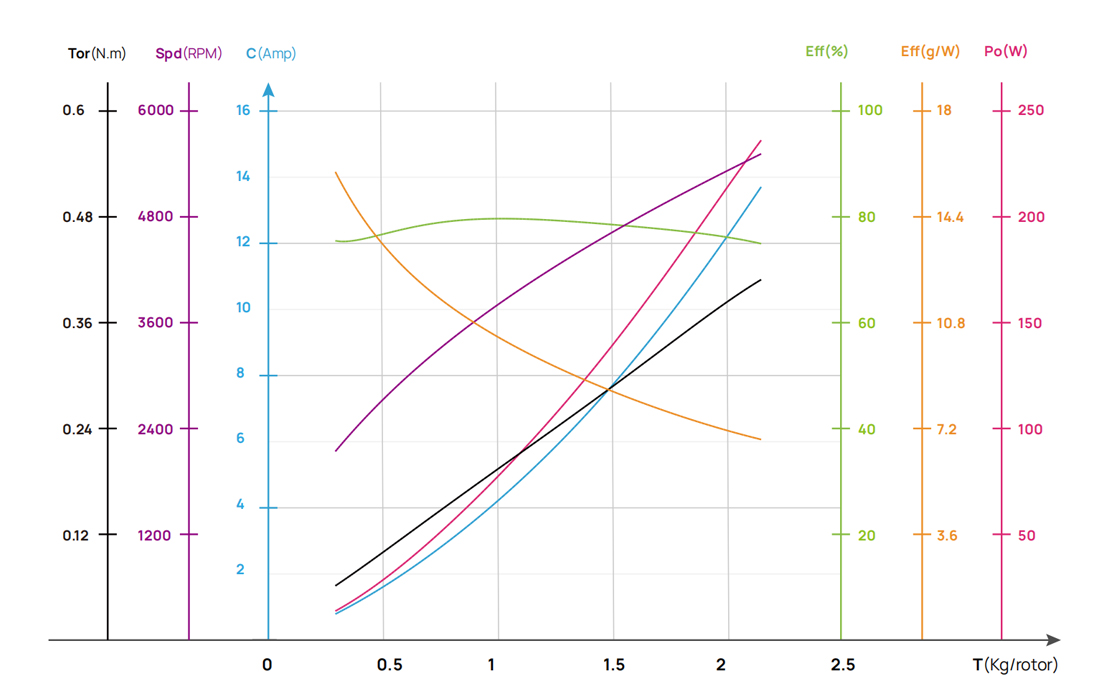

M4006 HP 330KV+MP 16*5.4"负载性能参数
M4006 HP 330KV+MP 16*5.4"数据表
| 工作电压(V) | 螺旋桨 | 油门(%) | 拉力(g) | 电流(A) | 输入功率(W) | 转速(RPM) | 力效(g/W) | 扭矩(N·m) | 输出功率(W) | 电机温度(℃) |
|---|---|---|---|---|---|---|---|---|---|---|
| 23V (6S LiPo) | MP 16*5.4" | 33% | 300 | 0.8 | 18.9 | 2163 | 15.8 | 0.06 | 16.10 | 57.0 |
| 35% | 329 | 0.9 | 21.3 | 2252 | 15.4 | 0.07 | 18.13 | |||
| 37% | 361 | 1.0 | 24.1 | 2348 | 15.0 | 0.07 | 20.51 | |||
| 39% | 398 | 1.2 | 27.4 | 2452 | 14.5 | 0.08 | 23.25 | |||
| 42% | 458 | 1.4 | 33.0 | 2618 | 13.9 | 0.09 | 28.08 | |||
| 45% | 527 | 1.7 | 39.8 | 2794 | 13.2 | 0.10 | 33.81 | |||
| 48% | 601 | 2.1 | 47.6 | 2976 | 12.6 | 0.12 | 40.45 | |||
| 51% | 681 | 2.5 | 56.5 | 3159 | 12.1 | 0.13 | 48.00 | |||
| 54% | 766 | 2.9 | 66.4 | 3342 | 11.5 | 0.15 | 56.42 | |||
| 57% | 853 | 3.4 | 77.3 | 3521 | 11.0 | 0.17 | 65.67 | |||
| 60% | 944 | 3.9 | 89.0 | 3696 | 10.6 | 0.18 | 75.69 | |||
| 63% | 1035 | 4.4 | 101.6 | 3864 | 10.2 | 0.20 | 86.40 | |||
| 66% | 1127 | 5.0 | 115.0 | 4025 | 9.8 | 0.22 | 97.72 | |||
| 69% | 1218 | 5.6 | 128.9 | 4179 | 9.4 | 0.23 | 109.59 | |||
| 72% | 1308 | 6.2 | 143.5 | 4326 | 9.1 | 0.25 | 121.93 | |||
| 75% | 1397 | 6.9 | 158.5 | 4466 | 8.8 | 0.27 | 134.69 | |||
| 78% | 1484 | 7.6 | 173.9 | 4599 | 8.5 | 0.28 | 147.85 | |||
| 81% | 1571 | 8.3 | 189.9 | 4726 | 8.3 | 0.30 | 161.43 | |||
| 84% | 1656 | 9.0 | 206.5 | 4849 | 8.0 | 0.32 | 175.53 | |||
| 87% | 1743 | 9.7 | 223.9 | 4971 | 7.8 | 0.33 | 190.31 | |||
| 90% | 1831 | 10.5 | 242.4 | 5092 | 7.6 | 0.35 | 206.06 | |||
| 100% | 2154 | 13.7 | 315.2 | 5516 | 6.8 | 0.41 | 267.90 |
以上数据为好盈实验室于室温 25°C、海平面高度，变化油门输入调节测得，电机温度为65%油门运行10分钟数据，仅供参考。

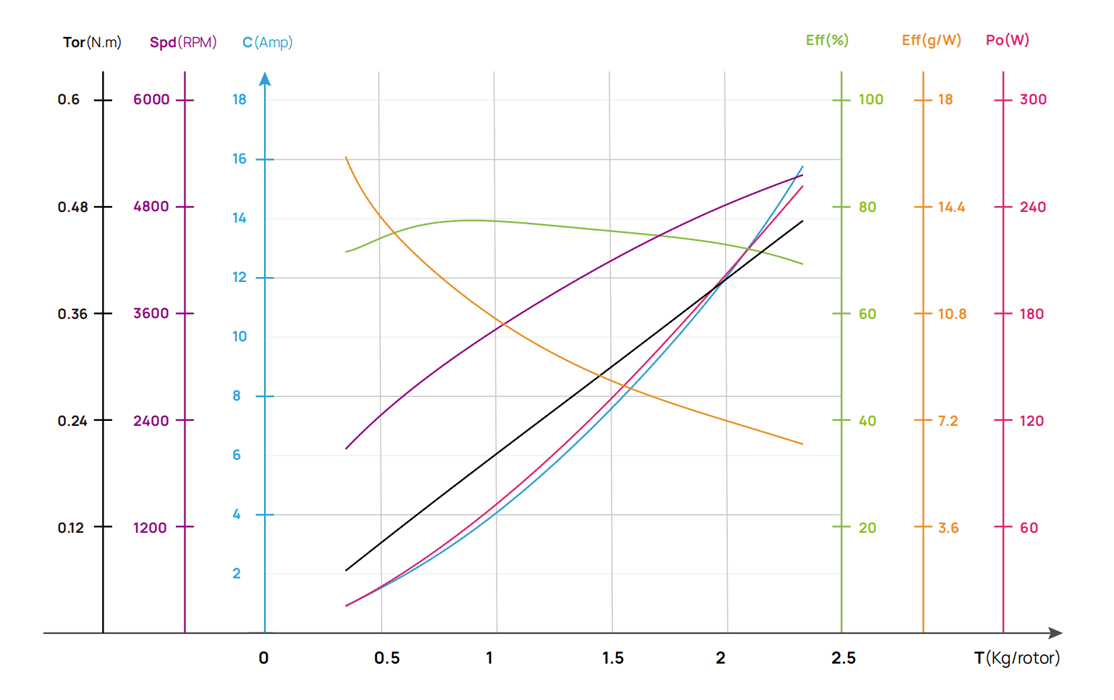

M4006 HP 330KV+MP 17*5.8"负载性能参数
M4006 HP 330KV+MP 17*5.8"数据表
| 工作电压(V) | 螺旋桨 | 油门(%) | 拉力(g) | 电流(A) | 输入功率(W) | 转速(RPM) | 力效(g/W) | 扭矩(N·m) | 输出功率(W) | 电机温度(℃) |
|---|---|---|---|---|---|---|---|---|---|---|
| 23V(6S LiPo) | MP 17*5.8" | 33% | 356 | 1.0 | 22.3 | 2105 | 16.0 | 0.07 | 18.9 | 70 |
| 35% | 394 | 1.1 | 25.6 | 2205 | 15.4 | 0.08 | 21.8 | |||
| 37% | 436 | 1.3 | 29.5 | 2311 | 14.8 | 0.09 | 25.0 | |||
| 39% | 482 | 1.5 | 33.8 | 2423 | 14.3 | 0.10 | 28.7 | |||
| 42% | 557 | 1.8 | 41.1 | 2594 | 13.6 | 0.11 | 34.9 | |||
| 45% | 639 | 2.1 | 49.4 | 2767 | 12.9 | 0.13 | 42.0 | |||
| 48% | 724 | 2.6 | 58.8 | 2938 | 12.3 | 0.15 | 50.0 | |||
| 51% | 813 | 3.0 | 69.2 | 3105 | 11.7 | 0.17 | 58.9 | |||
| 54% | 903 | 3.5 | 80.7 | 3268 | 11.2 | 0.18 | 68.6 | |||
| 57% | 995 | 4.0 | 93.1 | 3426 | 10.7 | 0.20 | 79.1 | |||
| 60% | 1086 | 4.6 | 106.4 | 3579 | 10.2 | 0.22 | 90.4 | |||
| 63% | 1178 | 5.2 | 120.4 | 3726 | 9.8 | 0.24 | 102.3 | |||
| 66% | 1269 | 5.9 | 135.1 | 3869 | 9.4 | 0.26 | 114.8 | |||
| 69% | 1360 | 6.5 | 150.3 | 4006 | 9.0 | 0.27 | 127.8 | |||
| 72% | 1450 | 7.2 | 166.1 | 4138 | 8.7 | 0.29 | 141.2 | |||
| 75% | 1539 | 7.9 | 182.5 | 4265 | 8.4 | 0.31 | 155.1 | |||
| 78% | 1629 | 8.7 | 199.5 | 4388 | 8.2 | 0.33 | 169.6 | |||
| 81% | 1719 | 9.4 | 217.2 | 4506 | 7.9 | 0.34 | 184.6 | |||
| 84% | 1809 | 10.3 | 235.8 | 4620 | 7.7 | 0.36 | 200.4 | |||
| 87% | 1902 | 11.1 | 255.6 | 4731 | 7.4 | 0.38 | 217.2 | |||
| 90% | 1997 | 12.1 | 277.0 | 4840 | 7.2 | 0.40 | 235.5 | |||
| 100% | 2331 | 15.8 | 363.6 | 5177 | 6.4 | 0.47 | 309.1 |
以上数据为好盈实验室于室温 25°C、海平面高度，变化油门输入调节测得，电机温度为65%油门运行10分钟数据，仅供参考。
