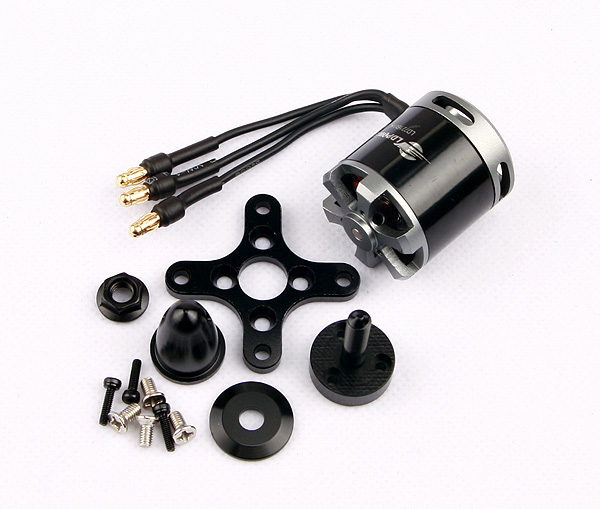

LDPower LD2216M 900KV 外转子无刷电机 /多旋翼电机-LD2216K9
| 型号 | LD2216M |
| 外壳直径 | 27.8mm |
| 外壳长度 | 34mm |
| 定子直径 | 22mm |
| 定子高度 | 16mm |
| 轴径 | 3mm |
| 重量 | 75 |
| 电池节数 | 3-4Cells |
| 无负载电流 | 0.3A |
| Prop Test Data LD2216M KV900 | ||||||
| Voltage(V) |
Propeller
(inch)
|
Throttle | Current (A) | Thrust(g) |
RPM
(RPM/Min)
|
Power(W) |
| 11.1 | APC10*3.8 | 50% | 2.7 | 370 | 4431 | 29.97 |
| 65% | 4.5 | 480 | 5135 | 49.95 | ||
| 75% | 7.9 | 670 | 6000 | 87.69 | ||
| 85% | 10.1 | 780 | 6360 | 112.11 | ||
| 100% | 12.4 | 900 | 6762 | 137.64 | ||
| APC11*4.7 | 50% | 3 | 390 | 3875 | 33.3 | |
| 65% | 5.6 | 550 | 4705 | 62.16 | ||
| 75% | 8.6 | 730 | 5298 | 95.46 | ||
| 85% | 12.1 | 890 | 5768 | 134.31 | ||
| 100% | 14.7 | 1000 | 6154 | 163.17 | ||
| APC12*3.8 | 50% | 4 | 500 | 3780 | 44.4 | |
| 65% | 6.8 | 670 | 4345 | 75.48 | ||
| 75% | 11.3 | 870 | 4940 | 125.43 | ||
| 85% | 13.3 | 940 | 5108 | 147.63 | ||
| 100% | 17.3 | 1100 | 5451 | 192.03 | ||
| 14.8 | APC10*3.8 | 50% | 4.2 | 540 | 5400 | 62.16 |
| 65% | 7.1 | 740 | 6240 | 105.08 | ||
| 75% | 11.4 | 980 | 7097 | 168.72 | ||
| 85% | 13.8 | 1060 | 7400 | 204.24 | ||
| 100% | 18.1 | 1280 | 7945 | 267.88 | ||
包含:
1 x LD2216M 900KV
1 x 桨夹配件包
1 x LD2216M 900KV
1 x 桨夹配件包
