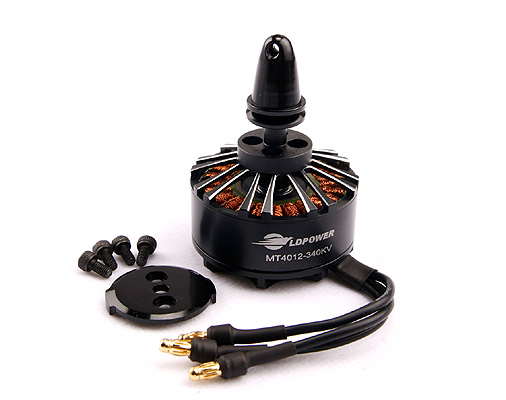

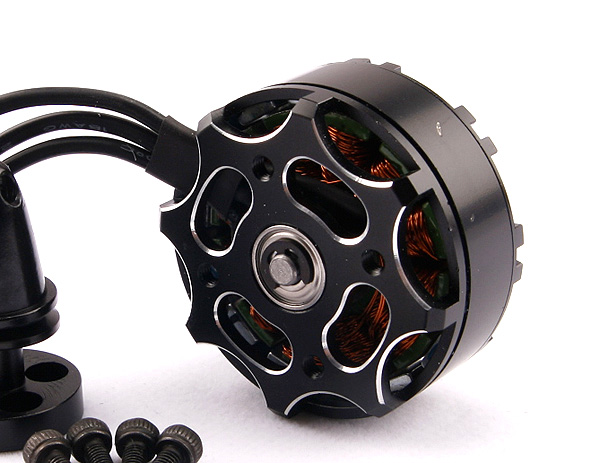

LD-POWER MT4012-340KV 盘式多旋翼无刷电机 3-6S-MT401234
| 型号： | MT4012 |
| 外径： | 45mm |
| 高度： | 33mm |
| 定子直径： | 40mm |
| 定子高度： | 12mm |
| 轴径： | 4mm |
| 重量： | 135g |
| 适用电池节数： | 4-8Cells |
| 无负载电流： | 0.9A |
| Voltage(V) | Propeller (inch) |
Throttle | Current (A) | Watts(W) | Thrust(g) | RPM (RPM/Min) |
Efficiency (G/W) |
| 18.5 | APC14*4.7 | 50% | 2.4 | 44.64 | 600 | 3220 | 13.44 |
| 65% | 4.4 | 81.84 | 900 | 3840 | 11.00 | ||
| 75% | 6.5 | 120.9 | 1200 | 4450 | 9.93 | ||
| 85% | 8 | 148.8 | 1350 | 4745 | 9.07 | ||
| 100% | 10.5 | 195.3 | 1600 | 5110 | 8.19 | ||
| DJI15*5 | 50% | 2.5 | 46.5 | 600 | 3255 | 12.90 | |
| 65% | 4 | 74.4 | 800 | 3880 | 10.75 | ||
| 75% | 6 | 111.6 | 1150 | 4550 | 10.30 | ||
| 85% | 7 | 130.2 | 1300 | 4850 | 9.98 | ||
| 100% | 9 | 167.4 | 1550 | 5300 | 9.26 | ||
| JXF 16*8 | 50% | 3 | 66.6 | 670 | 2950 | 10.06 | |
| 65% | 5 | 111 | 1000 | 3530 | 9.01 | ||
| 75% | 7.5 | 166.5 | 1400 | 4110 | 8.41 | ||
| 85% | 10 | 222 | 1600 | 4450 | 7.21 | ||
| 100% | 12.7 | 281.94 | 1900 | 4800 | 6.74 | ||
| 22.2 | APC14*4.7 | 50% | 3.5 | 77.7 | 800 | 3690 | 10.30 |
| 65% | 5 | 111 | 1100 | 4350 | 9.91 | ||
| 75% | 8 | 177.6 | 1500 | 5000 | 8.45 | ||
| 85% | 10.5 | 233.1 | 1800 | 5400 | 7.72 | ||
| 100% | 13.5 | 299.7 | 2100 | 5850 | 7.01 | ||
| DJI15*5 | 50% | 2.8 | 62.16 | 750 | 3650 | 12.07 | |
| 65% | 4 | 88.8 | 1050 | 4355 | 11.82 | ||
| 75% | 7 | 155.4 | 1400 | 5100 | 9.01 | ||
| 85% | 9.5 | 210.9 | 1760 | 5675 | 8.35 | ||
| 100% | 11.5 | 255.3 | 2050 | 6075 | 8.03 | ||
| JXF 16*8 | 50% | 3.8 | 84.36 | 900 | 3365 | 10.67 | |
| 65% | 6.5 | 144.3 | 1300 | 4085 | 9.01 | ||
| 75% | 10 | 222 | 1780 | 4685 | 8.02 | ||
| 85% | 12.8 | 284.16 | 2100 | 5110 | 7.39 | ||
| 100% | 16.5 | 366.3 | 2450 | 5475 | 6.69 |
包含:
1 x 电机
1 x 桨夹
1 x 螺旋桨压片
4 x 螺丝
