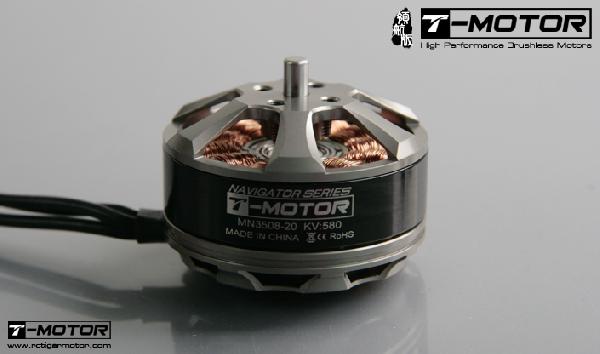

T-Motor MN3508 580KV 多旋翼用盘式无刷电机 (3-4S)-MN350820

Specifications:
KV.............................................................................................................580
Configu ration................................................................................12N14P
Stator Diameter................................................................................35mm
Stator Length.......................................................................................8mm
Shaft Diameter....................................................................................4mm

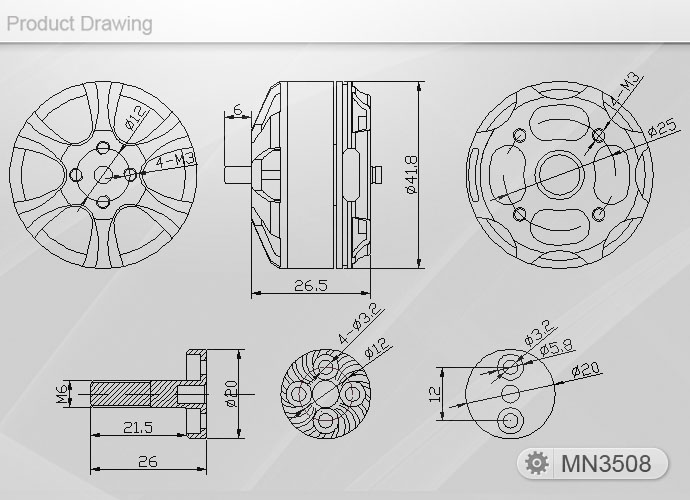

Motor Dimensions (Dia.*Len).......................................Φ41.8×26.5mm
Weight (g)...............................................................................................82g
ldle current(10)@10v(A)......................................................................0.4A
No.of Cells(Lipo)..................................................................................3-4S
Max Continuous current(A)180S.........................................................18A
Max Continuous Power(W)180S.....................................................400W
Max. efficiency current..............................................................(3-9A)>82%
internal resistance...........................................................................110m
