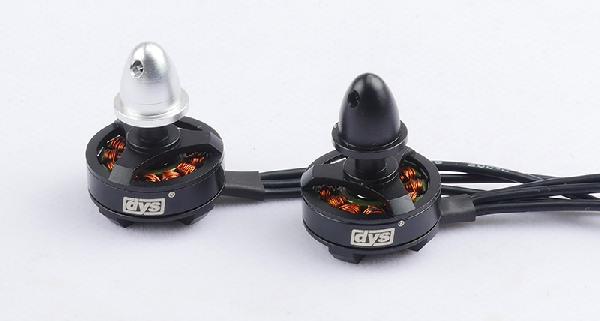

DYS 1804-2000KV 迷你多旋翼正反马达 / 对 黑色-180420
适合 250级别多旋翼飞行器
产品名称：DYS 1804-2000KV 迷你多旋翼正反马达 / 对 黑色
厂家编号：1804-2000KV
KV:2000
定子直径:18mm
定子长度:4mm
轴直径:M5
电机外形尺寸（直径×长度）:Φ23×25.1mm
重量（g）:16g
锂电（s）:2-3s
最大连续电流（A）: 5A
最大连续功率（W）: 55.5W
| NO LOAD | ON LOAD | LOAD TYPE | |||||
| VOLTAGE | CURRENT | SPEED | CURRENT | Pull | Power | EEP | Battery/prop |
| V | A | rpm | A | g | W | % | |
| 7.4 | 0.5 | 14600 | 0.7 | 40 | 5.2 | 7.7 | LiPoх3/5030 |
| 1.8 | 80 | 13.3 | 6.0 | ||||
| 2.9 | 120 | 21.5 | 5.6 | ||||
| 11.1 | 0.5 | 19450 | 1.1 | 70 | 12.2 | 5.7 | LiPoх4/5030 |
| 2.6 | 150 | 28.9 | 5.2 | ||||
| 5 | 220 | 55.5 | 4.0 | ||||
| 7.4 | 0.5 | 14600 | 0.7 | 50 | 5.2 | 9.7 | LiPoх3/6020 |
| 1.7 | 100 | 12.6 | 7.9 | ||||
| 2.8 | 150 | 20.7 | 7.2 | ||||
| 11.1 | 0.5 | 19450 | 0.9 | 90 | 10.0 | 9.0 | LiPoх4/6020 |
| 2.8 | 180 | 31.1 | 5.8 | ||||
| 5 | 280 | 55.5 | 5.0 | ||||
| Magnet specification is 40 uh, the bearing NSK, and the core material is 0.2 mm thick ultra-low loss material, with rotor balancing process, enameled wire can be 220 °. | |||||||
| INSPECT BY: | |||||||

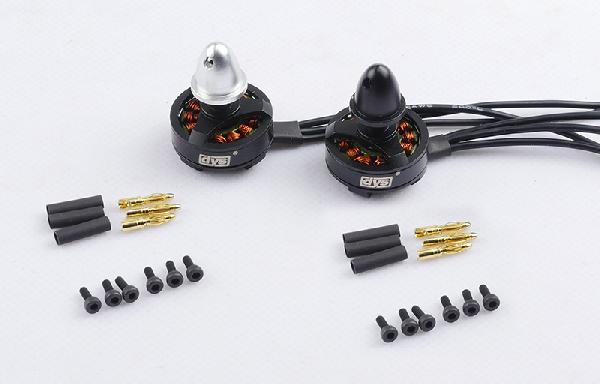

1 x 正转马达
1 x 反转马达
12 x M2固定螺丝
6 x 2.5mm香蕉头公头
1 x 反转马达
12 x M2固定螺丝
6 x 2.5mm香蕉头公头
