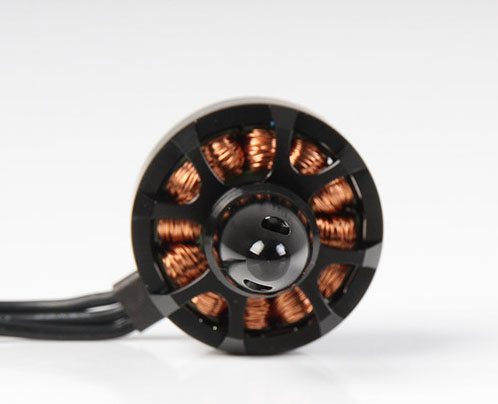

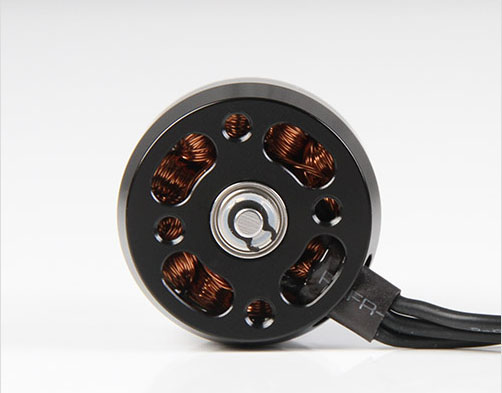

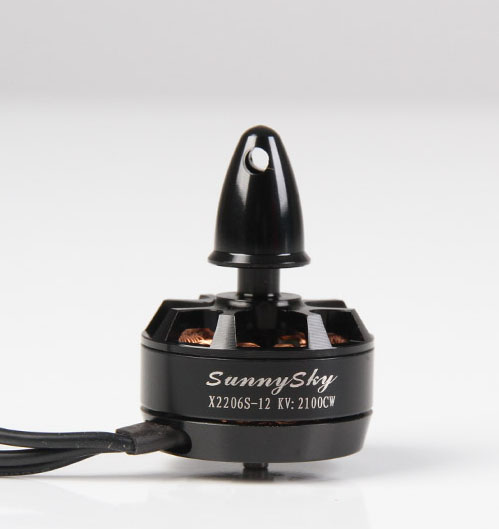

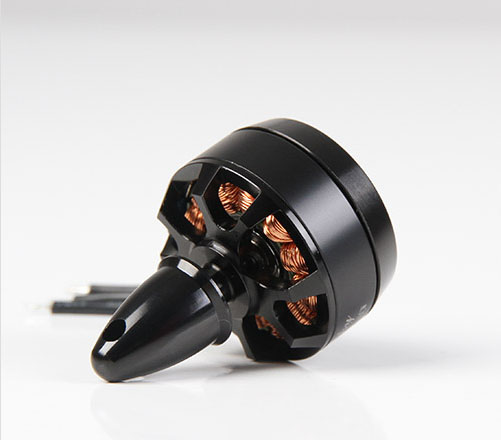

Sunnysky 朗宇 X2206S 2380KV 多旋翼无刷电机CW-2206S23CW

9 月 ago

1 minute

定子外径	22mm
定子厚度	6mm
定子槽数	12
定子极数	14
电机KV	2380
空载电流	1A
电机电阻	54mΩ
最大连续电流	25A/15S
最大连续功率	370W
重量	31g
转子直径	27mm
出轴直径	3mm
电机长度	16.6mm
电机含轴总长度	31.2mm
最大电池节数	2-4S
建议使用电调	30A
推荐螺旋桨规格	5030	5040	5045

Prop	Volts	Amps	Thrust(g)	Watts (W)	Efficiency (g/W)	全油门负载温度
(inch)	(V)	(A)	Thrust(g)	Watts (W)	Efficiency (g/W)	全油门负载温度
HQ5*3	11.1	1.6	100	17.76	5.630630631
		2.6	150	28.86	5.197505198
		3.7	200	41.07	4.869734599
		4.8	250	53.28	4.692192192
		5.8	300	64.38	4.659832246
		7	350	77.7	4.504504505
		8.3	400	92.13	4.341691089
		8.7	415	96.57	4.297400849	30℃
HQ5*3	14.8	1.3	100	19.24	5.197505198
		2.1	150	31.08	4.826254826
		3	200	44.4	4.504504505
		3.9	250	57.72	4.331254331
		4.9	300	72.52	4.136789851
		5.9	350	87.32	4.008245534
		7	400	103.6	3.861003861
		8.1	450	119.88	3.753753754
		9	500	133.2	3.753753754
		10.3	550	152.44	3.607976909
		11.5	600	170.2	3.525264395
		13.2	670	195.36	3.42956593	35℃
HQ5*4	11.1	1.6	100	17.76	5.630630631
		2.7	150	29.97	5.005005005
		3.9	200	43.29	4.62000462
		5.1	250	56.61	4.416180887
		6.5	300	72.15	4.158004158
		8.1	350	89.91	3.892781671
		9.4	400	104.34	3.833620855
		10.8	456	119.88	3.803803804
		13.2	500	146.52	3.412503413
		13.9	550	154.29	3.564715795	31℃
HQ5*4	14.8	1.3	100	19.24	5.197505198
		2.2	150	32.56	4.606879607
		3.1	200	45.88	4.359197908
		4.2	250	62.16	4.021879022
		5.2	300	76.96	3.898128898
		6.6	350	97.68	3.583128583
		7.8	400	115.44	3.465003465
		9.1	450	134.68	3.341253341
		10.2	500	150.96	3.312135665
		11.6	550	171.68	3.203634669
		12.8	600	189.44	3.16722973
		14.6	650	216.08	3.008145131
		15.8	700	233.84	2.993499829
		17.5	750	259	2.895752896
		18.6	800	275.28	2.906131938
		20.6	866	304.88	2.840461821	42℃
HQ5*4.5	11.1	1.6	100	17.76	5.630630631
		2.6	150	28.86	5.197505198
		3.7	200	41.07	4.869734599
		5	250	55.5	4.504504505
		6.2	300	68.82	4.359197908
		7.6	350	84.36	4.148885728
		9.2	400	102.12	3.916960439
		10.5	450	116.55	3.861003861
		12	500	133.2	3.753753754
		14	555	155.4	3.571428571	33℃
HQ5*4.5	14.8	1.3	100	19.24	5.197505198
		2.1	150	31.08	4.826254826
		3	200	44.4	4.504504505
		4	250	59.2	4.222972973
		5	300	74	4.054054054
		6.3	350	93.24	3.753753754
		7.5	400	111	3.603603604
		8.7	450	128.76	3.494874185
		10.1	500	149.48	3.344929088
		11.3	550	167.24	3.288686917
		12.8	600	189.44	3.16722973
		14.1	650	208.68	3.114816945
		15.7	700	232.36	3.012566707
		17.5	750	259	2.895752896
		19	800	281.2	2.844950213
		21.3	870	315.24	2.759802056	43℃
HQ6*4.5	11.1	1.5	100	16.65	6.006006006
		2.5	150	27.75	5.405405405
		3.5	200	38.85	5.148005148
		4.6	250	51.06	4.896200548
		5.7	300	63.27	4.741583689
		7	350	77.7	4.504504505
		8.2	400	91.02	4.394638541
		9.6	450	106.56	4.222972973
		11	500	122.1	4.095004095
		12.4	550	137.64	3.995931415
		14	600	155.4	3.861003861
		15.4	650	170.94	3.802503803
		17.4	700	193.14	3.624313969
		19	750	210.9	3.556187767
		20.8	800	230.88	3.465003465
		23.2	850	257.52	3.300714508
		23.9	870	265.29	3.279430058	51℃

包含:
1 x X2206S 2380KV 多旋翼无刷电机CW正螺纹
